Outside Broadcast Solutions > OB SKYE

OB ‘SKYE’Powerful 16 camera 4K UHD Broadcast Truck

020 8035 8010
020 8035 8010

Contact us now to discuss your production requirements

Email

The first truck in the UK to be designed around cinematic capture in UHD with HDR workflow options. OB Skye’s gallery has full front row positions complete with a powerful Kahuna 9600 Switcher as well as 2 evs, graphics and producer positions. Sound is covered with a Calrec Summa desk offering 5:1 mixing.

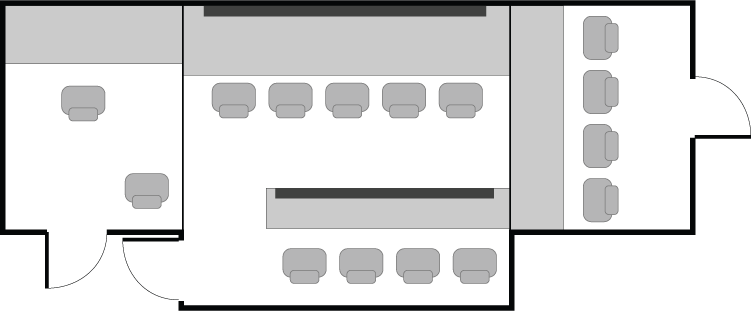

OB SKYE - Plan
  • SKYE specification
  • 10 Seater HDR/UHD Unit
  • 16 camera channels
  • OB SKYE’s gallery has full front row positions complete with a powerful Kahuna 9600 switcher as well as 2 EVS, graphics, and producer positions.
  • Sound is covered with a Calrec Summa desk offering 5:1.
  • 10.5m x 3m (including cab and side pod)
  • VIDEO
  • SAM Kahuna 9600 - 2 M/E
  • 8 Keyers per full M/E
  • Ross Ultrix 12G routers
  • Leader 12 HDR LV5490 waveform
  • Sony OLED monitors
  • MADI embedding and de-embedding
  • UpDownCross converters
  • Analog to SDI & SDI to Analog
  • Grass Valley K2 Solo VT
  • 2 x EVS or replay of choice
  • Clarity or Caspar graphics
  • Hyperdeck Studio Pro record
  • CAMERA
  • Sony HDC or Arri Amira camera channels
  • Red and green tally
  • Production and engineering comms (engineering on individual channels)
  • SOUND
  • Calrec Summa 36 x 8 Console
  • 5:1 Surround Sound
  • PPM metering
  • Genelec nearfield monitors
  • COMMS
  • Telex RTS Odin Matrix
  • Telex RTS keypanels
  • Telex RTS wireless beltpacks
  • ProLink BX2000 radio base station
Vivid Broadcast - OB SKYE
Vivid Broadcast - OB SKYE
Vivid Broadcast - OB SKYE
Vivid Broadcast - OB SKYE
Vivid Broadcast - OB SKYE
Vivid Broadcast - OB SKYE
OB RÙM

OB RÙM

See details of our smaller footprint,
10 camera OB truck

Learn more

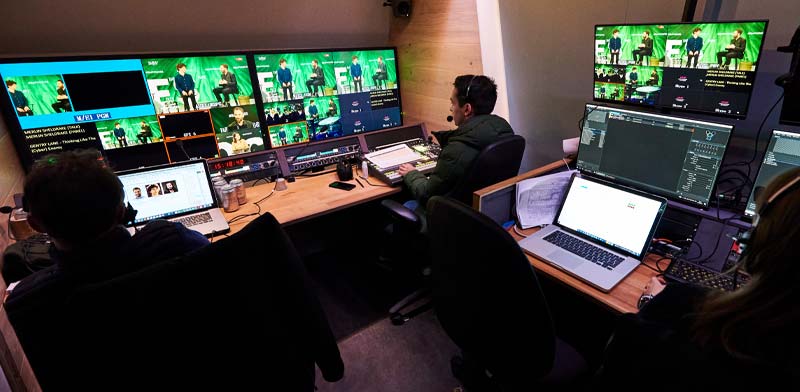

Our unrivalled technical know-how and stringent quality assurance is built into all our OB trucks

Our unrivalled technical know-how and stringent quality assurance is built into all our OB trucks

Hiring from Vivid means you have the best quality equipment to support your next production. And we’re here to help with whatever aspects are needed, from power to SNG booking, sourcing specialist cameras or providing chase edit systems. Just ask.

Planning

We pride ourselves on thorough planning and preparation. From site visits to technical drawings, we’ll ensure that each detail has been considered and planned in advance.

Testing

Before every job the system is fully prepped and set up for the specific project. From testing RF cameras to lighting director and autocue remote stations, each aspect is checked and configured to maximise time on site.

Passion

We combine our experience and expertise with passion and are committed to high production values.
